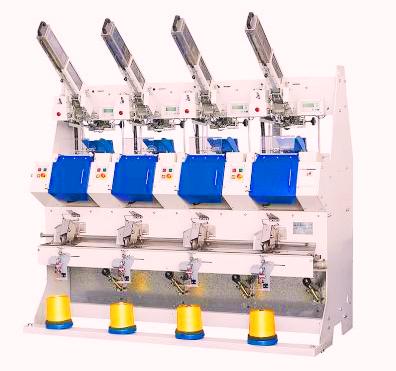

Cone Winding
1. Reciprocating cams which
is attached with traversing guide and attached with a shat
2. A drum is in opposite of every cone.
3. Cones are placed on cone holder and kept on
the contact of drum
4. Cam controls the yarn
with yarn guide
Working principle
(A) Gets motion from motor
in one side of machine and cam shaft and drum shaft rotates by motor pulley
(B) Yarn supply gets from a
bobbin and yarn go to the cone by yarn stop motion guide and yarn traversing
guide.
(C) Since cones are on
holder and are contact with drum cones rotates due to the friction of drum and
holder and become winding on yarn cone.
(D) This winding is
controlled with yarn guide.
(E) Winding is stop with
stop motion mechanism when yarn breakage.
(F) When cone gets
predetermined width, discrete from drum contact automatically and placed new
cone by taken out of the cones
